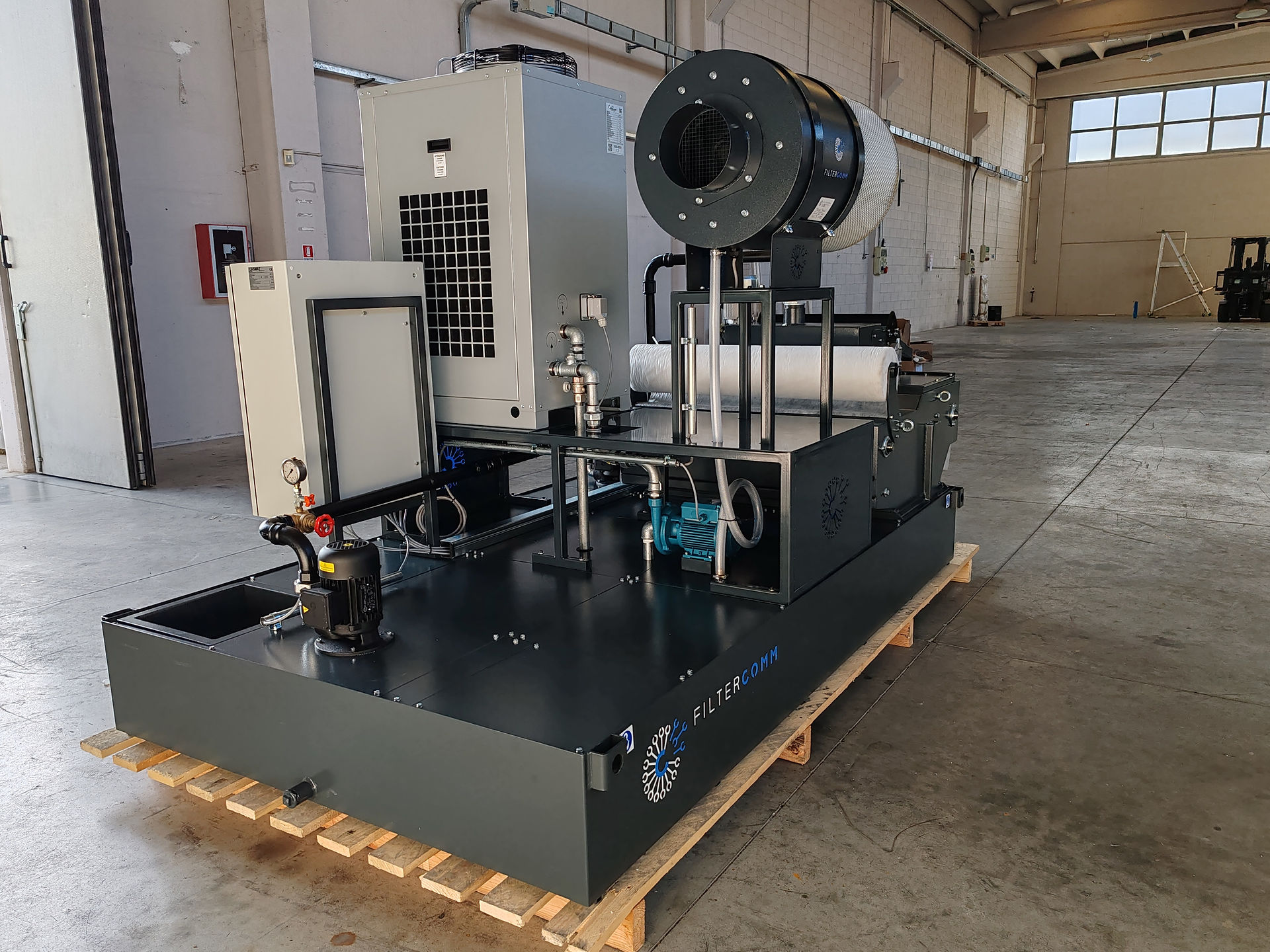

Coolant filter and oil mist collector in one installation.
Custom designed for an OEM customer, our DEEPFLOW hydrostatic filtration system coupled with our SPACE oil mist collector for installation on a grinding machine.
The SPACE air filtration system filters the oil mist being generated inside the machine tool cabin and the separated oil particles are collected and conveyed into the hydrostatic filtration system's dirty coolant tank.
At the same time, polluted emulsion exiting the machine tool falls by gravity through the coolant inlet into the Deepflow collection tank.
The polluted emulsion is then conveyed by piping to the magnetic filter where the magnetic particles are effectively removed by rotating magnetic discs. After this preliminary separation of pollutants, the liquid continues and falls onto the coolant filtration system's filter fabric bed where the next filtration stage takes place.
As the pollutant layer grows on the filter paper, filtration efficiency increases and the filtered industrial coolant falls into the clean containment tank below, ready to be pumped back to the machine tool for production purposes.
The system features
Deepflow 250 hydrostatic filtration system with 1200L coolant collection tank and Magdisk 300 magnetic separator.
Low pressure pump for clean coolant return to pallet washing.
High pressure pump for clean coolant return to grinding wheel.
Chiller 5 kW, CE electrical cabinet for system control, Space 2000 oil mist collector with Hepa post filter.
Industrial filtration is essential to visibly improve working conditions and production quality in your workshop. Installing a coolant filtration system or an air filtration system will guarantee the following advantages:
Protection of workers from inhaling hazardous pollutants in the air
Effective removal of impurities, contaminants, and solids from processing liquids
Better quality of the industrial coolant
Better quality of production
Increased efficiency and lifespan of downstream processes
Money saving due to less waste of coolant (recycling)
Effectiveness in removing oil mist from the air inside the workshop
Fit a Filtercomm. We know filtration. We have your solutions.
